Foshan Davinci Technology Co., Ltd. gaw Miwa mungdan hta kam mai dik ai hku galaw shapraw ai hte garan jaw ai ni kaw na langai mi rai nna, n-gun ja ai wire winding jak hpe mung madi shadaw ya ai. Anhte a htingnu kaw na ndai kaw stock kaw nga ai manu n hkrat ai sha, law law lang galaw lu ai wire winding jak hpe dut shabra na matu chyeju dum ga ai. Manu jahpu hpe san yu na matu matut mahkai mai ai.

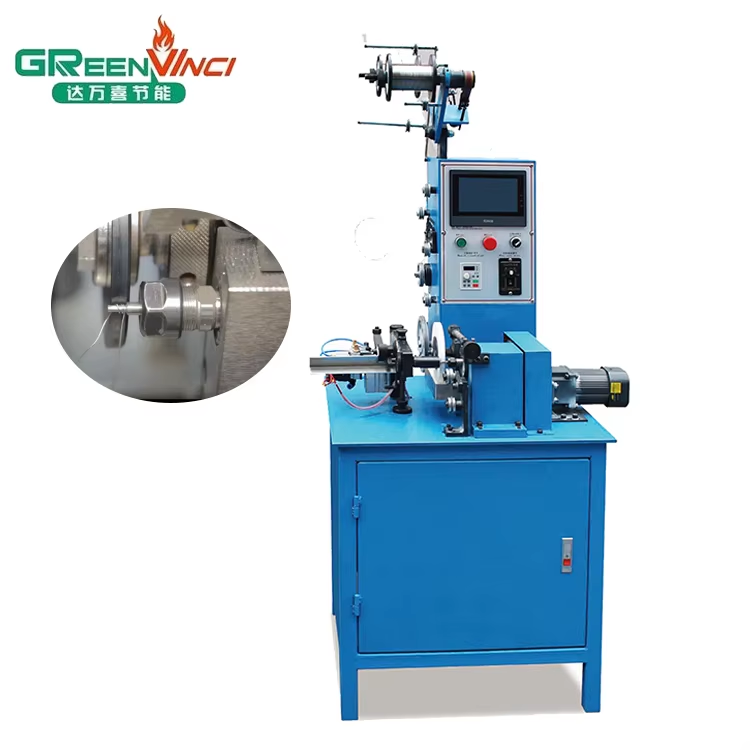

Multi-magam bungli law law hpe ninghkap ai wire hpe shinggrup ai jak
Hpaga lam hpe tsun dan ai
Ndai-magam bungli law law galaw lu ai ninghkap ai wire hpe shinggrup ai jak's a madung bungli gaw, nbung hpe ninghkap lu ai n-gang (nickel-chromium n-gang shing nrai, magri -chromium-aluminum n-gang zawn re ai) hpe, nsen hkrak ai shara hta, ginjaw madi shadaw ai n-gang langai a grup yin hta, spiral hku nna shinggrup na matu re. Dai gaw, wan n-gun ja ai arung arai ni (electric heating elements zawn re ai) galaw shapraw ai hta ahkyak ai kaga arung arai langai mi rai nga ai.
Madung Magam Bungli hte Magam Bungli Tara
Yaw shada ai lam: Resistance coil ni hpe galaw shapraw na matu. Coil ni a uniformity, pitch, hte total resistance ni gaw wan n-gun, katsi ai hpe shapraw kau ai lam, wan n-gun hpe shapraw ai element a asak hpe hkrak dawdan ya ai. Dai majaw, coiled wire a quality gaw, jak a hkrak ai lam hta grai madung nga ai.
Bungli galaw ai npawt tara:
Spindle shinggrup ai lam: Spindle gaw, lapran na madi shadaw ai n-gang hpe shinggrup nna, shinggrup ai bungli hpe galaw na matu, shinggrup ai.
Wire lai di ai lam:Tengman ai wire lai di ai ladat gaw, madi shadaw ai n-gang a axis hku nna, ninghkap ai wire hpe loi loi hte lam madun ya nna, langai sha re ai spiral coil hpe shabyin ya ai.
Coil (pitch) a n-gun (sh) n-gun n law ai hpe spindle a lawan ai hte wire lai di ai lawan ai lapran na hkrak ai ratio hku nna chye lu ai.
N-gun hpe hkang lu ai:Hpa majaw nga yang, -lawan ai encoder gaw, spindle shingjawng ai lam hpe aten dep yu maram nga ai. Dai hpang PLC gaw, n-gun n-gun n-gun (inherent resistivity) (Ω/m) hpe madung tawn nna, n-gun n-gun yawng hpe aten dep sawn la ai.
Hpaga arai masat masa
|
N-gun jaw ai |
220V\\50Hz\\0.6kW |
|
Nbung jaw ai |
0.5~0.7MPa |
|
Htu ai amyu |
Lahkawng lang gap ai cylinder |
|
Ka-ang kata na Diameter |
Φ1.0mm~Φ6.0mm(mandril hku nna gram lajang ai) |
|
N-gun n-gun n-gun |
Φ0.1 mm~1mm |
|
Madung Axis Motor |
370W(Galai shai mai ai Frequency) |
|
Leng Motor |
90W(Speed hpe gram lajang mai ai) |
|
Shadawn shadang |
750×600×1650mm |
|
Shen yu ai |
175kg |
|
-magam bungli law law galaw lu ai ninghkap ai wire hpe shinggrup ai jak winding resistance accuracy gaw 2% rai nga ai (spindle a lawan ai 800-1000 rpm a matu htap htuk ai, n-gun ja ai wire a hkam sharang ai lam hpe mung hkrak hkra galaw ra ai; n rai yang, hkrak ai lam hpe hkra machyi shangun na re). |
|
Madung lam
1.Tengman ai hku hkang lu ai:Resistance manu ni (sh) winding galu ai hpe tau hkrau masat da mai ai. Ndai multi-functional resistance wire winding machine gaw shi hkum shi hkrak hkrak hti nna galaw ai, tau hkrau masat da ai pru wa ai atsam du ai shaloi shi hkum shi jahkring kau ai, npawt nhpang hku nna n-gun dat ai arai langai hte langai a wan n-gun atsam parameters ni hpe n-gun jaw ai lam hte hkrak ai lam hpe madi shadaw ya ai.
2. Hkrang n bung ai galai shai ai lam: Wiring diameter n bung ai winding spool ni hpe lawan ladan galai mai ai, galaw shapraw ra ai lam amyu myu hpe loi loi hte hkap la lu ai.
Multi-functional Winding: Laksan shingjawng ai ladat gaw, wire langai, lahkawng, masum hpe pyi kalang ta shingjawng lu ai. Machine langai gaw asan sha hte yak hkak ai structure ni a matu customer ni ra sharawng ai lam yawng hpe hkap la lu nna, gumhpraw bang ai kaw na akyu hpe grai shatsaw ya lu ai.
3. Burry-Manu jahpu n jaw ra ai sha n-ga:Precision cutters ni gaw n-gup magap ni hpe n-gun n rawng ai hte n-gun n rawng ai hku galaw ya ai, npawt kaw nna katsi ai wire quality hpe grau kaja hkra galaw ya ai hte burrs ni a majaw byin pru wa ai localical overheating (sh) short circuit byin wa na hpe koi lu ai.
4. N kaja ai lam ni byin wa yang, Automatic Stop: Wire tangling (sh) daw mat ai zawn re ai n kaja ai lam ni byin wa yang, dai jak gaw shi hkrai shi hkring nna alarm galaw ya ai, core components ni hpe makawp maga ya ai, material n kaja ai hpe shayawm ya ai, shim lum ai hte matut manoi galaw shapraw lu ai.
5.Shinggyim masha-Mashin hte matut mahkai ai lam: Hkrang n bung ai touchscreen hte hpaw da ai, parameter ni hpe masat da ai hte status hpe yu reng ai lam ni hpe asan sha mu lu ai. Dai hta n-ga, law malawng lang ai parameters 10 hpe mung shinggyin la lu ai, dai hpe product model galai ai shaloi click langai hte sha shaga la mai ai majaw, product amyu myu a lapran lawan ai hku galaw shapraw ai lam hpe galai shai lu ai.
6. PU leng lahkawngn-gun dat ai wire hpe dip nna, n-gun dat ai wire hpe lapran kaw tawn da nna, n-gun n galai mat hkra galaw u.

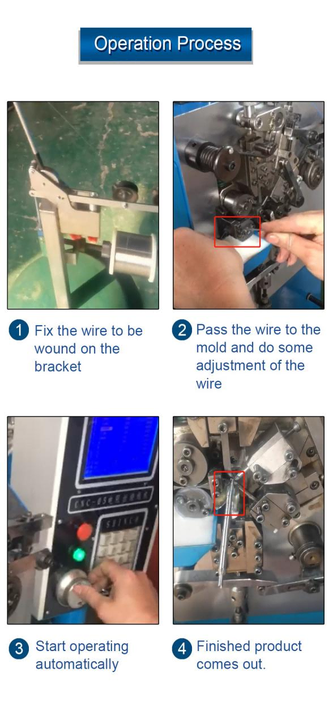

Magam bungli galaw ai ladat
1. Shawng nnan, rack ntsa kaw na resistance wire hpe bang nna, . multi-magam bungli galaw lu ai ninghkap ai wire hpe shinggrup ai jak . Dai jak gaw, tau hkrau masat da ai galu de resistance wire hpe shinggrup hpang na re.
2. Winding galaw ai shaloi, dai jak gaw shi hkum nan resistance wire hpe ra ai galu de gang je kau nna, rack kaw na shaw kau na re.
3. Dai jak hta, winding galaw ai lam hpe hkrak hkrak, kam mai ai hku galaw lu na matu, hkang ai ladat hpe bang da ai. Dai hkang ai ladat gaw, ninghkap ai wire hpe hkrak ai hku shinggrup da nna, hkrak ai shara kaw tawn da ai hpe madi shadaw ya ai.
4. Dai n-gun wire hpe tau hkrau masat da ai galu de shinggrup ngut ai hpang, Tubular Heater Winding Machine gaw coiled n-gun wire hpe hpang na galaw shapraw ai lahkam de shi nan htawt sit ya na re.
Dai jak hpe lang na matu loi ai hte sharin hkam la na matu mung nau n ra ai. Dai hta user-friendly interface hpe bang da nna, step-by-step hku nna gara hku lang na ngu ai lam ni hpe jaw ya ai. Dai hta n-ga, Tubular Heater Winding Machine hpe mung, hkala nba n byin hkra, shim lum ai hku galaw lu na matu, shim lum ai arung arai ni hte galaw da ai.
Shawk shawn ai

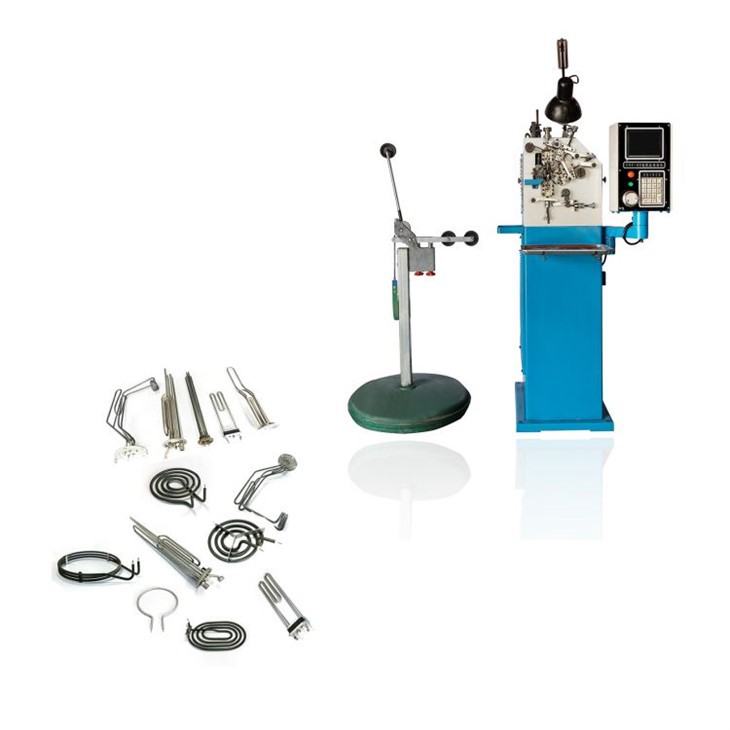

Ndai -magam bungli law law galaw lu ai ninghkap ai wire shinggrup ai jak gaw, nbung laru hpe shinggrup na matu galaw da ai rawt jat ai jak langai rai nga ai. Nta kata na arung arai ni galaw ai hta grai law hkra jai lang mai ai rai nna, hkaulan mam shadu ai jak, nbung shadu ai jak, wan wut ai jak ni a matu hka ja ai arung arai ni zawn re ai hka ja ai arung arai amyu myu hpe galaw shapraw ai hta grai law hkra jai lang mai ai.

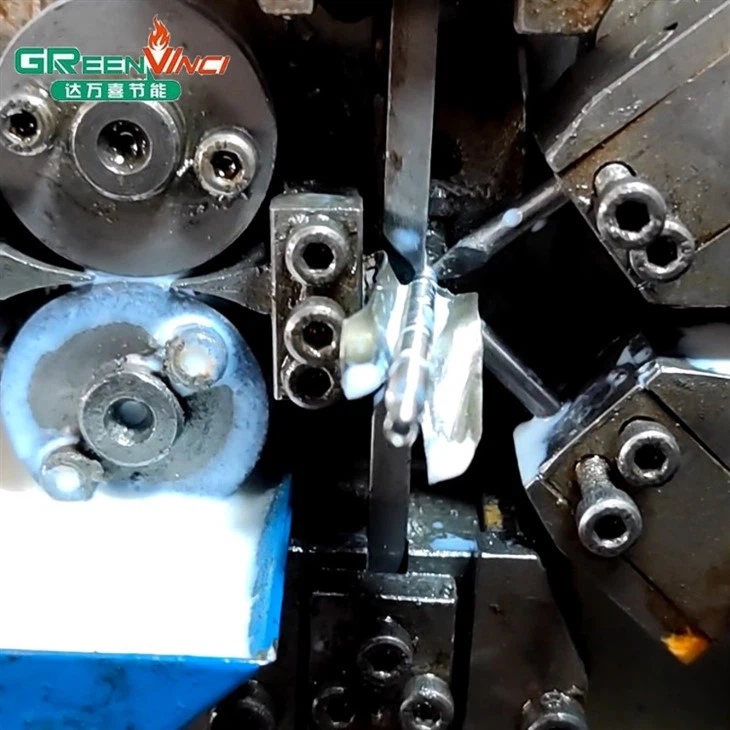

0.5mm ninghkap ai wire diameter hpe madung tawn nna 3-wire winding galaw ngut sai arai
