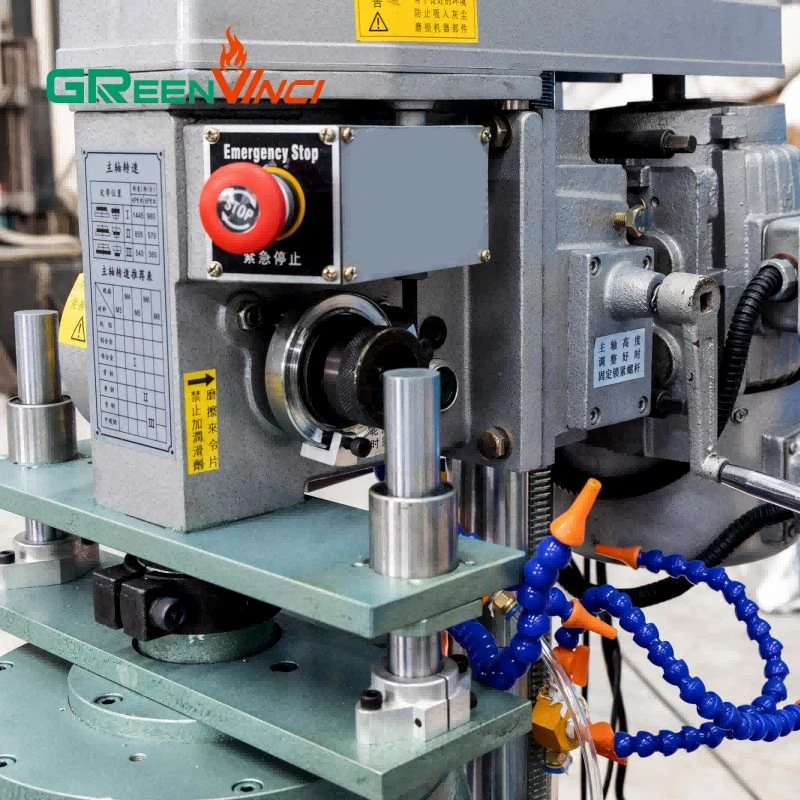

Multi- N-gun ja ai Machine
Bungli galaw ai npawt nhpang
1. Machine arung arai yupku npawt .
2. Belt cover
3. Electric cabinet
4. Tapping tsan ai arung arai ni
5. Hkyak hkyak jahkring ai switch
6. Limit/Travel switch
7. N-gun yawm mat ai
8. Motor
9. multi{1}} hpe lang ai arung arai
10. Column base plate
11. bungli galaw mai ai
Arung arai ni hpe shadawn shadang
|
N RE AI. |
Amyu |
ST. |
ST2 |
ST3 |
|
1 |
Kaja ai size range bungli galaw ai |
220×230mm |
340×340mm |
340×340mm |
|
2 |
Shinggan na hka n-gun |
Φ52mm |
85mm |
Φ95mm |
|
2 |
Shinggan diameter hpe shinggrup u |
42mm |
Φ70mm |
85mm |
|
3 |
Spindle taper |
JT2S/B16. |
MT2/JT6 |
MT3 |
|
4 |
Spindle end hpe npawt nhpang de du hkra |
100-480mm |
140-480mm |
120-470mm |
|
5 |
n-gun n rawng ai lam |
45mm |
65mm |
65mm |
|
6 |
Spindle galai ai lawan ai RPM |
420/760/1340 |
155/285/505 |
50/100/200 |
|
7 |
n-gun atsam |
0.55KW/4P. |
1HP/6P |
2HP/4P |
|
8 |
Max tapping hpe spindle a n-gun dat |
(S45C)M8 |
(S45C)M16 |
(S45C)M32 |
Madung lam ni
⑴Automatic bungli galaw ai lam:
Multi{0}}spindids heavy tap machine hpe galaw ai shaloi, bungli galaw ai lam gaw n tara ai rai yang, grau nna tapping material gaw n-gun n rawng ai hku galaw ai arung arai ni rai yang, n hkum tsup ai thread ni hpe shapraw ya lu ai. Tapping galaw ai shaloi kaja dik htum ai thread hpe galaw na matu, lathe hta lawm ai npawt tara langai sha lang ra ai. Dai jak hta rack hte gear ni hpe laksan kayau da ai. Ndai hpawng de ai lam gaw lathe hte maren sha byin shangun ai.
1
Spindle gaw shawng de kayin wa ai. Tap gaw ra ai sung ai shara de du wa ai shaloi, lawu na limit microswitch gaw nhtang wa shangun nna, tap gaw unscrews byin shangun ai. Continuous cycle, spindle gaw shawng de bai shinggrup na, tap gaw set depth de du wa nna, spindle gaw shi hkrai shi nhtang wa nna, tap gaw shi hkrai shi bai hpaw na re. Langai lang hta, tapping galaw ai lam gaw, shingdu de nhtang wa ai hpang, spindle gaw upper limit micro switch de du wa ai shaloi, shi hkum shi jahkring kau na re.
Tap ni n hkrat sum hkra makawp maga na matu shimlam ladat lahkawng
Emergency reset switch:
① Friction grai kaba ai (sh) bungli galaw ai hka htung gaw grai n-gun n rawng ai rai yang, workpiece a kata na diameter gaw grai kaji ai majaw, specifications ni hpe n lu hkap la ai rai yang, tap hpe loi loi hte daw kau na re. Accident n byin na matu hte hka htung hpe makawp maga na matu, ndai tapping jak hta clutch langai mi hpe bang da ai. torque npawt tara hpe jai lang nna, grai law hkra n-gun n rawng ai hpe pat shingdang ai.
② Tap hpe hka htung a lapran hte n htap htuk ai shaloi (sh) tapping galaw na matu yak hkak ai shaloi, tap gaw aten loi mi na hkra shi hkrai shi hkring mat nna, dai hpang nhtang wa nna, original position de shi hkrai shi bai nhtang wa na re.
Shawk shawn ai
Multi- n-gun ja ai n-gun ja ai hka htung jak gaw aluminum a matu ra ai arung arai amyu myu a matu htuk manu ai
Myit maju jung nna gram lajang ai lam
1. Magam bungli galaw ai ladat ni hte shani shagu na gram lajang ai ladat ni hpe ngang ngang kang kang hkan sa na
2. Device kata de n-gun n rawng hkra pat shingdang ai: Floating ga nhpu hte n-gun rawng ai hka htung ni gaw, n-gun n-gun yawm wa ai, n-gun yawm mat ai (sh) n-gun yawm mat ai (sh) hkra machyi ai lam ni hpe loi loi hte byin shangun chye ai.
3. Circuit board hpe gram lajang ai lam
.
5. N-gun rawng ai battery hpe ayan galai na .
6. Cabinet a nbung hpe n-gun shayawm ai hte nbung n-gun hpe ayan jasan jaseng u
7. System a grid voltage hpe ayan yu reng na
Anhte mung .htu shaw ai jak langai mi
